Linh kiện thủy lực, thiết bị thủy lực |

Tên |
Xi lanh thủy lực |
|
Mã sản phẩm |
2-13 |
|
Giá |
CALL |
|
Size |
|
|
Nhà sản xuất |
Châu âu, Nhật, Đài loan, Việt Nam |
|
Cửa hàng |
www.namviet-tech.com.vn |
|
Khuyến mãi |
|
|
Bảo hành |
Chính Hãng |
Mô tả
OMA - CA - B - 120D - 100 - R45 - S1500 - 140K - Y
OMA:Model None:Standard Type
OMA:Shaft Teeth Screw On & Shaft Key Insert Type(Small)
OMB:Shaft Teeth Screw On & Shaft Key Insert Type(large FA)
OMC:Shaft Teeth Screw On & Shaft Key Insert Type(Large CA)
OMD:Production Machinery Purposes
OME:Synchronous Hydrulic Cylinder
RAM:RAM Type Hydrulic Cylinder

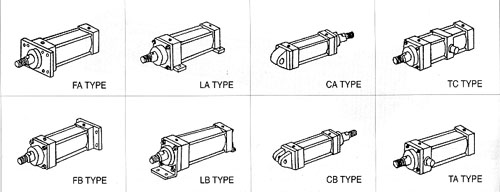

CA:Mounting Type
B:Cushioned Device B:2 sides R:rode side H:rear cover side None:non-cushioned
120D:Tube Outter Dia.(mm)
100:Tube Bore(mm)
R45:Rod Dia.(mm) R45:Piston Type R45R:RAM Type
S1500:Stroke (mm)
140K:Working Pressure 70K:70kgf/cm2(1000psi) 140K:140kgf/cm2(2000psi) 210K:210kgf/cm2(3000psi)
Y:Rod Adapter None:Without I:I Type Y:Y Type O:Bearing Type
![]() |
|
![]() ![]() |
|
![]() ![]() |
|
![]() |

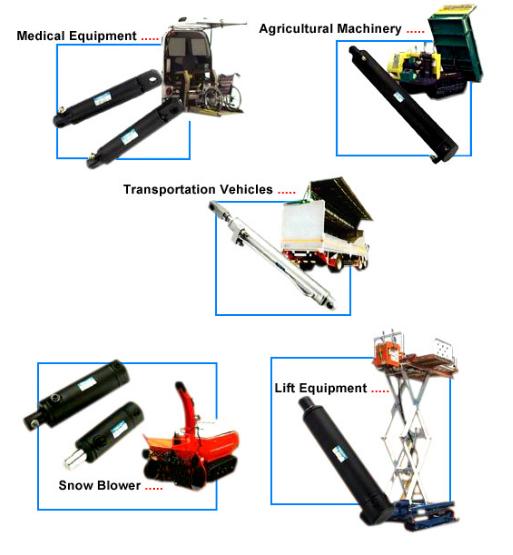

Professional manufacturer of hydraulic/pneumatic cylinder for various vehicles& industries. |
![]() |
Production can be according to customer's specification.design.function. |
![]() |
Quality assurance & fast delivery is our constant principle. |
"... còn rất nhiều sản phẩm, Quý Khách vui lòng liên hệ để chúng tôi gởi mẫu tham khảo."
